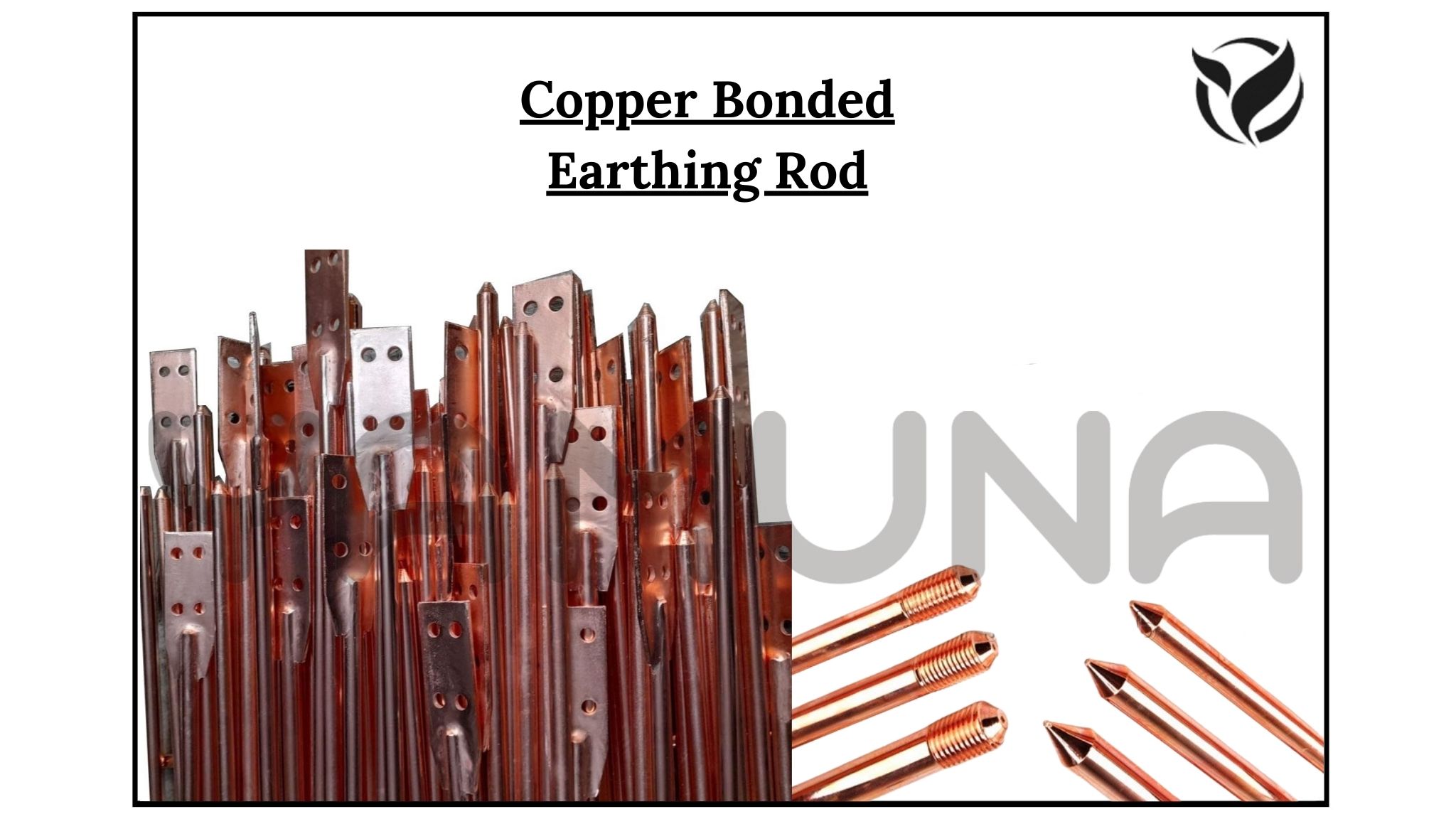

Copper Bonded Earthing Rod for Durable and Low-Resistance Grounding
The Copper Bonded Earthing Rod is a critical part of any reliable earthing system. At Yamuna Group, we manufacture and supply high-performance copper bonded rods designed for long life, corrosion resistance, and excellent conductivity. These rods are widely used in solar energy systems, lightning protection, power distribution networks, and telecom applications.
Product Specifications
-
Product Name: Copper Bonded Earthing Rod
-
Brand: Soneri™
-
Material: Low-carbon steel with electrolytic copper bonding
-
Copper Thickness: 50 to 250 microns
-
Diameter Range: 14 mm, 17.2 mm, 25 mm
-
Length Options: 1000 mm to 3000 mm
-
Types Available: Threaded / Unthreaded
-
Accessories: Coupler, driving head, clamp, rod to tape clamp
-
Testing & Certification: Lab-tested as per IS/IEC standards
Key Features
-
High-conductivity and corrosion-resistant copper bonding
-
Uniform coating ensures strong molecular bonding
-
Ideal for soil with high salt and moisture content
-
Compatible with exothermic welding, GI clamps, and copper connectors
-
Maintenance-free grounding for long-term use
Applications of Copper Bonded Earthing Rod
-
Rooftop solar power plants
-
Solar pump installations
-
Substations and data centers
-
Lightning arrestor grounding systems
-
Telecommunication towers
-
Residential and commercial buildings
Why Choose Yamuna Group?
With 20+ years in the industry, Yamuna Group delivers copper bonded earthing rods that comply with global standards like IS 3043, UL 467, and IEC. We ensure quality, consistency, and quick dispatch from our Rajkot manufacturing unit.
All Earthing Electrodes are manufactured under the strict boundary of BIS Regulations; Refer to IS 3043 Earthing Standards for more technical information.
